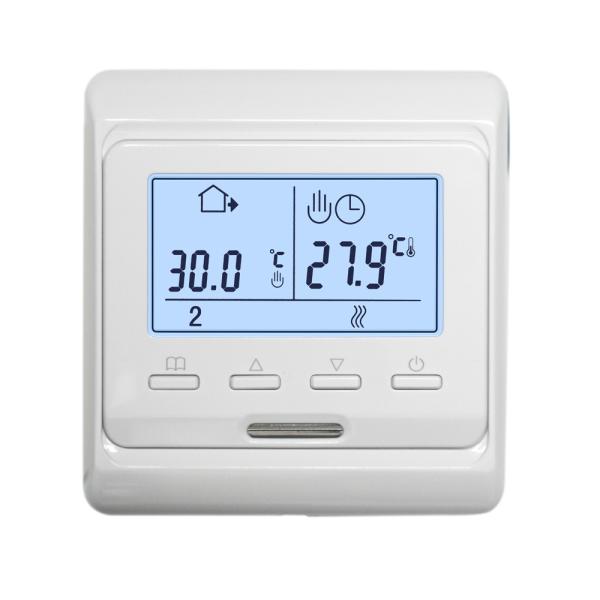

Professional Electric Radiant Heat Thermostat HVAC Systems With LCD Screen

Name: Professional Electric Radiant Heat Thermostat HVAC Systems With LCD Screen
Brand: Saiko
Price: 1 USD

China Professional Electric Radiant Heat Thermostat HVAC Systems With LCD Screen wholesale

Brand Name : Saiko

Model Number : SK51

Certification : CE

Place of Origin : Jiangsu

MOQ : 64PCS

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 3000PCS/WEEK

Delivery Time : 3-5 workdays

Packaging Details : 64PCS/CTN (CTN SIZE:435*395*290mm)

Type : HVAC Systems

Voltage : AC230V

Current load : 16A floor heating thermostat

Setting range : +5~+90℃

Floor sensor : NTC sensor

Housing material : Self-extinguishing PC

Contact Now

Weekly Programming Floor Heating Thermostat with LCD Screen

Weekly circulation, it is possible to set 6 periods called events each day with different temperatures, also you can select "manual mode" or "temporary control mode" according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.

Professional Electric Radiant Heat Thermostat HVAC Systems With LCD Screen

Technical data

Power Supply	AC200-240VAC 50/60HZ
Accuracy	±0.5ºC
Probe sensor	NTC
Power Consumption	<0.3W
Load current	3A(water heating),16A(electric heating)
Temperature Adjustable Range	5°C~90°C( can adjust to 35°C~90°C)
Limit Temperature Range	5°C~60°C( factory setting: 35°C)
Output	Switch relay
Insulating condition	Normal environment
Running program	Set per 1 week as a cycle
Installation	Wall mounted
Application	Water Floor Heating System
	Electric Floor Heating System
	Infrared Heater System
Certificate	CE,RoHS

Selection Table

Model	Current	Application
E51.713	3A	Built-in& floor sensor, floor limit sensor, weekly programming
E51.723	3A	Built-in& floor sensor, floor limit sensor, weekly programming. A potential-free output
E51.716	16A	Built-in& floor sensor, floor limit sensor, weekly programming

Features

C - Convenient operation creates convenient life.

O -Options of black and white housing.
M - Manage your home even when you are in any place around the world at any time.
F - Fashion design blends in with any décor.
O -Zero service fee.
A - Accuracy of 0.5 °C keeps your comfortable temperature within the level you set.
B - Breath Power button always remind you the world truely exist.
L - Lovely price helps you save not only energy.
E - Easy UI interface could be used even by child.

Display symbols

Professional Electric Radiant Heat Thermostat HVAC Systems With LCD Screen

Dimensions:mm

Professional Electric Radiant Heat Thermostat HVAC Systems With LCD Screen

Circuit diagram

Professional Electric Radiant Heat Thermostat HVAC Systems With LCD Screen

Packaging & Shipping

Packaging Details:

UNIT WEIGHT: 0.35KG/PC;
64 PCS/CTN;
GROSS WEIGHT: 25KG;
PAPER BOX PACKING;
BOX DIMENSION: 42*40*29CM

Delivery Detail:

Shipped in 15 days after payment
