16A Weekly Programmable Touch Screen Floor Heating Digital Thermostat With Anti-flammable PC
Introduction
The SK90 is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.
The thermostat acquires the actual temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
Application

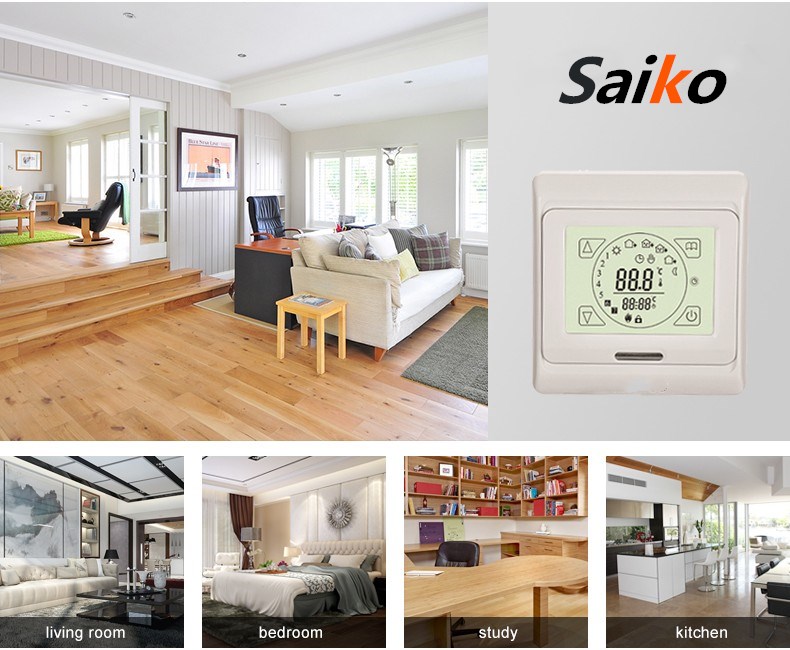

For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
Parameters
| Accuracy | ±0.5℃ |
| Probe sensor | NTC |
| Load current | 3A |
| Output | Switch relay |
| Application | Water/Floor heating |
Features
| Touch-screen operating interface |
| 7-day programmable function for energy-saving operation |
| On/off control output for heating device |
| Symbol indicator when heating is on |
| Temperature limitation function for protecting the floor |
| "Key-lock" function for protecting the setted parameters (especially suitable for Public Places) |
| Current room temperature displaying when the thermostat is switched-off |

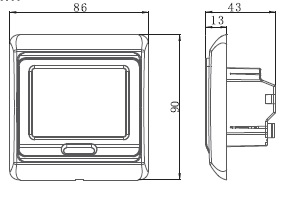

Dimension:mm
Circuit diagram
--------- Packaging & Shipping ---------
FAQ
Q:How long is your delivery time?
A:Generally it is 3-5 days if the goods are in stock. Or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q:What is your quality warranty?
Answer: All of our products are with 2 year quality warranty.
Q:Should we use our logo/brand?
Answer: Yes, of course. OEM available,both on package or devices.
Q:How can I get a sample? What’s the sample fee? How long will it take?
Answer: All sample available with sample fee,sample fee is confirmed with exact model you choose.Samples can be ready 3-4 workdays.
